Waveshare ESP32-S3 Development Board, 32-Bit LX7 Dual-Core Processor, Integrates GC9A01 Display Driver Chip, with 1.28inch IPS Round LCD, 240×240 Resolution, Supports WiFi/Bluetooth
US$10.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by shinesccs.com.au
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$10.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by shinesccs.com.au
Free 30-day returns Details
Product details
| Management number | 217004135 | Release Date | 2026/04/19 | List Price | US$10.00 | Model Number | 217004135 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
- Type-C connector, keeps it up to date, easier to use Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
- Onboard 3.7V lithium battery recharge/discharge header and GPIO headers
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

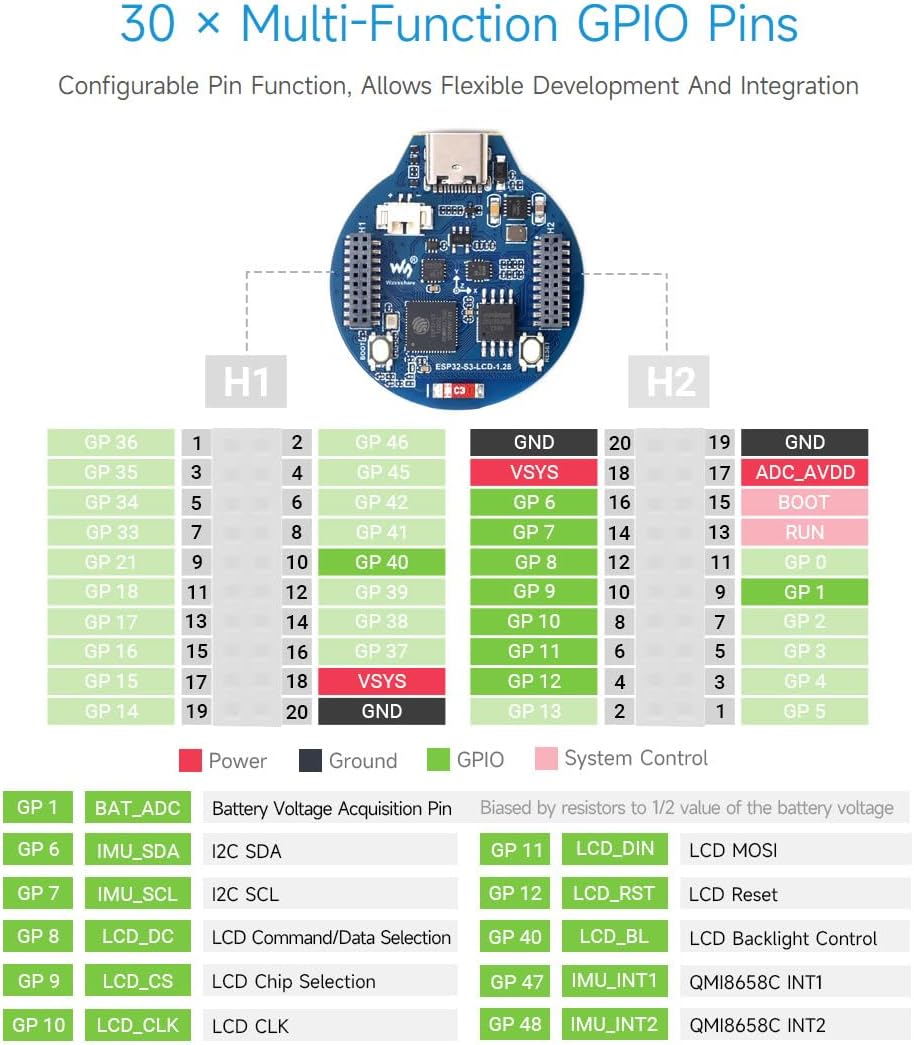

- Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
| Brand | waveshare |
|---|---|
| USB 20 | 2 |
| Platform | Windows |
| Model Name | ESP32-S3-LCD-1.28 |
| Chipset Type | Espressif ESP32-S3R2 |
| Manufacturer | Waveshare |
| Model Number | ESP32-S3 |
| BuiltIn Media | ESP32-S3-LCD-1.28 |
| Number of Ports | 2 |
| Total Usb Ports | 1 |
| Total SATA Ports | 1 |
| Memory Clock Speed | 240 MHz |
| Warranty Description | 1 year |
| Compatible Processors | ESP32-S3 |
| RAM Memory Technology | DRAM |
| Memory Slots Available | 2 |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 18 MB |
| Main Power Connector Type | Type-C |
| System Bus Standard Supported | SATA 3 |
